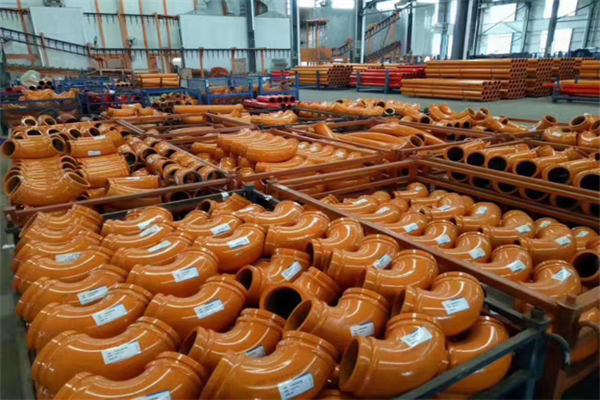

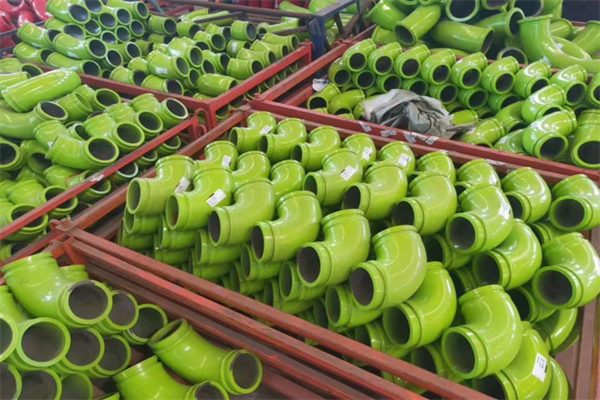

concrete pump elbow

Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works

Classification :

Keywords: Steel Plate

E-mail

Overview

Essential details

Condition:

New

Applicable Industries:

Building Material Shops, Machinery Repair Shops, Construction works

Video outgoing-inspection:

Provided

Machinery Test Report:

Provided

Marketing Type:

New Product 2020

Place of Origin:

Shandong, China

Warranty:

6 Months

Product name:

Concrete Pump Bend Pipe

MOQ:

1 Pc

Material:

Natural Rubber

Weight:

45kg

Size:

customer needs

Color:

According to your requirement

Quality:

High-quality

Package:

Standard package

1.Our elbow products series mainly including carbon steel elbows,high wear resistant elbows,and other material upon your request.

2.A wide range of specifications for you.OEM service available .

3.quality certification of ISO 9001:2008

Name	Material	Specification	Weight	Common life time	Life tine for two end parts	Max work pressure
Normal bend	ZG40Mn2	DN125R27590°	16kgs	6000-8000m³	1000-3000m³	126 bar
Wear-resistant bend	Mn13-4	DN125R27590°	16.5kgs	20000-25000m³	2000-7000m³	132 bar
Twin wall bend	Cr20NiCu1Mo+G20	DN125R27590°	15kgs	60000-80000m³	20000-30000m³	91 bar
Twin wall bend	GX350+G20	DN125R27590°	15kgs	80000-150000m³	40000-50000m³	98 bar

wear resistant single or double layer concrete pump elbow
type	single wall elbow				double wall elbow
material	casting steel , st52				GX350+G20
model	DN125		DN150	DN175	DN125	lengthen elbow
	*R27590D**	*R27590D+110**	36D	F2000	*R27590D**	*R27590D+110**
	*R27545D**	*R27590D+211**	*R40030D**	A3000	*R27545D**	*R27590D+211**
	*R27525D**	*R27590D+411**	*R40045D**	471B	*R27525D**	*R27590D+411**
	*R27520D**	*R27590D+424**	*R40030D**	571B	*R27520D**	*R27590D+424**
	*R27515D**	*R27545D+170**	*R48890D**	A1000	*R27515D**	*R27545D+170**
	*R18090D**	*R27545D+310**	*R50090D**	C1000	*R18090D**	*R27545D+310**
	*R23260D**	20D lengthen	*R28090D**	B2000	*R23260D**	20D lengthen
	*R24036D**	25D+740			*R24036D**	25D+740
	*R24030D**	40D Zoomlion			*R24030D**	40D Zoomlion
	*R24015D**				*R24015D**
	*R38529D**				*R38529D**
	*R31533D**				*R31533D**
Technic	forged
Average life	25000cube				50000cube
Application	used in concrete transport in construction work
